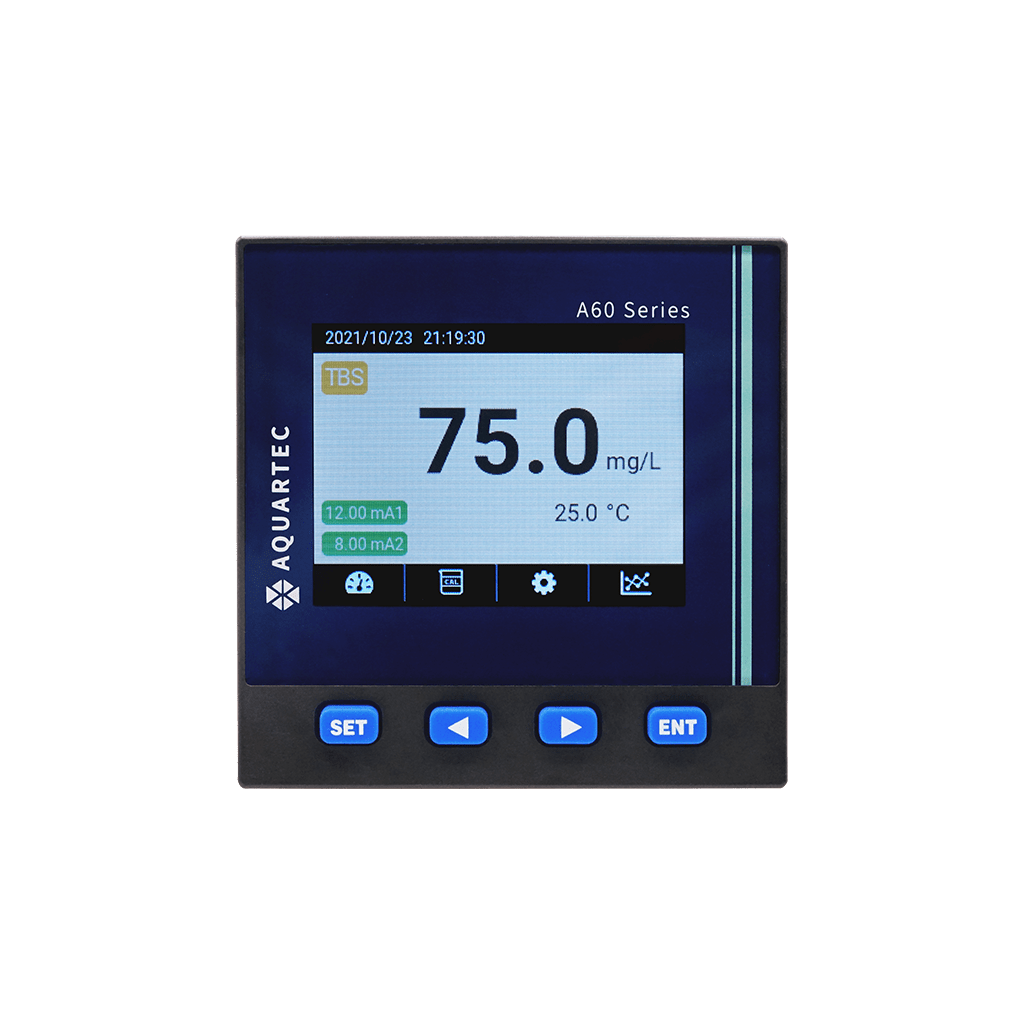

A60-XPA-TBS<br>濁度/總懸浮固體控制器(傳送器)

A60-XPA-TBS
Turbidity/TSS/MLSS Controller

NT$100

  • Large TFT-LCD Display
  • User-friendly navigation system
  • 32 bits ARM-based MCU
  • Accurate Measuring Circuit
  • Stable and robust power module
  • General/Advanced password protection
  • Fine-tunable 0/4~20 mA output current
  • 4~20mA, modbus on RS485 module





Category:
  • Large Graphic LCD Display

  • User-friendly navigation system





  • 32 bits ARM-based MCU



  • CE certification

Specification

Model :A60-XPA-TBS
ParameterTurbidityTotal Suspended Solids
Range*0~100 / 1,000 / 4000 NTU0~1,000 / 50,000 mg/L
Resolution*0.01 / 0.1 / 1 NTU0.01 / 0.1 / 1 mg/L
(Automatically switch according to measured value)(Automatically switch according to measured value)
Accuracy*±2 % F.S.±2% F.S.
Operating Temperaure0~50 °C
Storage Temperature-20~70 °C
Calibration ModeZero, Span, Process adjustment
DisplayTFT-LCD display
LanguageEnglish / Simplified Chinese / Traditional Chinese
Analog OutputTwo sets of isolated 0/4~20mA corresponding to measurement, max load 500 Ω
Both 0/4~20mA are the same settings.
Relay SettingsTwo sets of Relays for High/Low point control, One set of Relay for timer settings
Max. 250 VAC 5A
Measuring ChartMeasuring chart corresponded to 0/4~20mA output recorded for one hour
(Statistical result with average, maximum and minimum values per minute)
Digital CommunicationMODBUS RTU
ClockClock is working when power off
Power Supply100V~240 VAC±10%，50/60 Hz，6W Max.
InstallationPanel mounting
Dimensions96mm(H) × 96mm(W) × 110mm(D)
Cutout Dimensions91.5mm(H) × 91.5mm(W)
Weightapprox. 0.4 Kg
*Depending on the sensors
