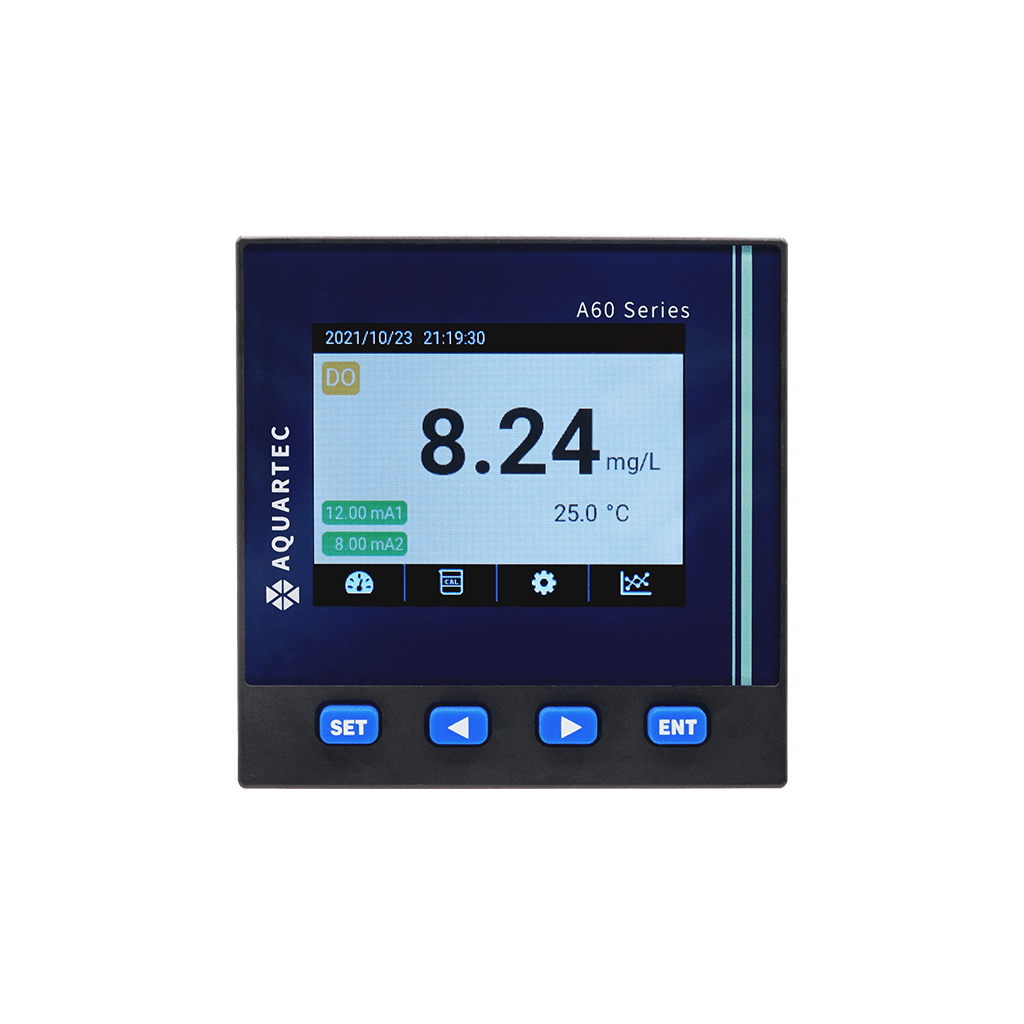

A60-XPA-DOP
Dissolved Oxygen Controller
NT$100
- Large TFT-LCD Display
- User-friendly navigation system
- 32 bits ARM-based MCU
- Accurate Measuring Circuit
- Stable and robust power module
- General/Advanced password protection
- Fine-tunable 0/4~20 mA output current
- 4~20mA, modbus on RS485 module
- Large Graphic LCD Display
- User-friendly navigation system
- 32 bits ARM-based MCU
- CE certification
Specification
| Model : | A60-XPA-DOP | |||||
|---|---|---|---|---|---|---|
| Parameter | Saturation | Concentration | Temperature | |||
| Range* | 0~600 % | 0~60 mg/L | -30.0~130.0 °C | |||
| Resolution* | 0.10% | 0.01 mg/L | 0.1 °C | |||
| Accuracy* | ±1 % F.S. | ±1% F.S. | ±0.2 °C | |||
| Temp. Sensor | NTC22K 、NTC30K、PT1K或手動設定 | |||||
| 補償 | Automatic temperature compensation, Manual input of Salinity and pressure compensation | |||||
| Operating Temperaure | 0~50 °C | |||||
| Storage Temperature | -20~70 °C | |||||
| Calibration Mode | Zero, Span, Process adjustment | |||||
| Display | TFT-LCD display | |||||
| Language | English / Simplified Chinese / Traditional Chinese | |||||
| Analog Output | Two sets of isolated 0/4~20mA corresponding to measurement, max load 500 Ω | |||||
| Relay Settings | Two sets of Relays for High/Low point control, One set of Relay for timer settings | |||||
| Max. 240 VAC 0.5A | ||||||
| Measuring Chart | Measuring chart corresponded to 0/4~20mA output recorded for one hour | |||||
| (Statistical result with average, maximum and minimum values per minute) | ||||||
| Digital Communication | MODBUS RTU | |||||
| Clock | Clock is working when power off | |||||
| Power Supply | 100V~240 VAC±10%，50/60 Hz，6W Max. | |||||
| Installation | Panel mounting | |||||
| Dimensions | 96mm(H) × 96mm(W) × 110mm(D) | |||||
| Cutout Dimensions | 91.5 mm(H) × 91.5 mm (W) | |||||
| Weight | approx. 0.4 Kg | |||||
| 認證 | CE | |||||
| *Depending on the sensors | ||||||
